Marine
Complete system design, supply, installation, commissioning and testing
At sea you are all alone…
We have the experience and technological knowledge to provide you with reliable fire fighting solutions designed in accordance with IMO/SOLAS regulations, many classification societies and national authorities.
G Fire can help you protect every area of your ship against fire. Our team focuses on meeting your specifications to supply complete fire fighting solutions. Therefore we work with multiple fire fighting technologies; learn more about the technologies in the symbols below.
We aim to get involved from the very beginning. Based on a thorough evaluation of various solutions in close cooperation with naval architects, marine authorities, ship designers and owners, we recommend the most appropriate fire fighting solution for each specific project.
From beginning to end, G Fire offers you a total solution covering all aspects of certified fixed fire fighting systems:
- System evaluation: i.e. which technologies are best suited to the project
- System design and dimensioning
- Layout and installation drawings
- Commissioning, start-up and service
Fighting fire– as easy as blowing out a match
Imagine a total fire fighting solution provider that offers you the technology most suitable for your application. Technology that puts out the fire in seconds, with minimal damage, while giving you the best possible protection. At G Fire Solutions, that is what you get.
Reaching even higher
Simplicity in design, obtained by using the most advanced technologies, results in the highest operation reliability. All of our products are made of first-class materials and in a comprehensively tested design.
The fast growing technology
Water mist technology is now one of the most progressive fire fighting technologies within the marine segment. G Fire Solutions was one of the pioneers in this market and has proven expertise with installations worldwide.
G Fire Solutions is close by
G Fire Solutions and its associates, regional offices and agents constitute a worldwide network that provides comprehensive technical support, installation, commissioning and repair services. This network ensures that our reputation for fire protection excellence is maintained and enhanced.

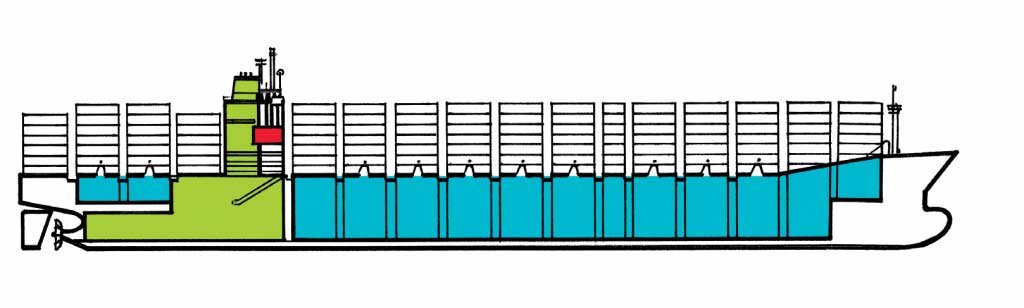

CONTAINER VESSELS – BULK CARRIERS- MULTI-PURPOSE VESSELS
OIL-PRODUCT/CHEMICAL TANKERS/LNG-LPG GAS

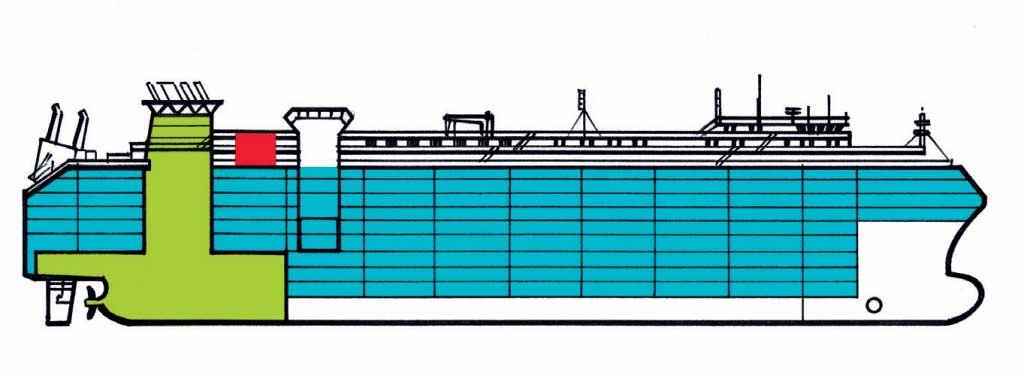

RO-RO/PCC/PCTC
PASSENGER/CRUISE VESSELS
NAVY VESSELS

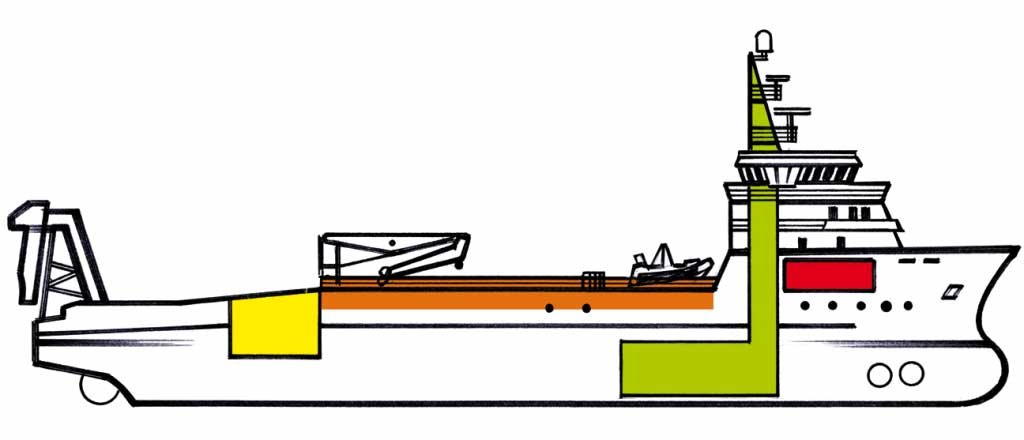

SUPPLY VESSELS AND TUGS
G Fire Solutions has the experience and technological knowledge to provide you with fire fighting solutions designed in accordance with IMO/SOLAS regulations and many classification societies and national authorities. Our team specialises in meeting your specifications, no matter how specific, to supply precisely the system you need.
G Fire water mist system
The G Fire Water Mist System is unique.
Water is forced through nozzles at very high pressure to create a water mist with the most effective fire fighting drop size distribution. The extinguishing effects give optimum protection by cooling, due to heat absorption, and inerting due to the expansion of water by approximately 1,700 times when it evaporates.
The G Fire Water Mist System provides better protection for personnel and surroundings and minimises potential water damage, as the majority of the water mist evaporates. The G Fire Water Mist System is available for accommodation, total flooding, local applications and deep fat fryers, and also as a high pressure or low pressure system.
High and low pressure CO2 systems
CO2 systems are used as total flooding systems in engine rooms, machinery spaces and cargo holds. The high pressure system consists of a number of CO2 cylinders, whose outlets are connected to a common manifold. From there, the CO2 is directed, via selector valves, into the various protected spaces. If the protected space is large, a high number of cylinders are required. These can be replaced by a single CO2 tank, saving approximately 50% in weight and installation costs. The tank contains CO2 cooled to -18 °C. The tank, refrigerators, distribution valves, controls, etc., are supplied pre-wired and ready assembled on a steel frame.
Foam fire extinguishing system
Foam used in fire protection is an aggregate of air-filled bubbles formed from aqueous solutions, and is of lower density than the lightest flammable liquids. It is mainly used to form a coherent floating blanket on flammable and combustible liquids to prevent or extinguish fires by excluding air and cooling the fuel. It then prevents re-ignition by suppressing the formation of flammable vapours, and also adheres to surfaces, providing a degree of exposure protection from adjacent fires. Foam can be used as a fire prevention, control or extinguishing agent for flammable liquid in tanks or processing areas.
Dry chemical powder fire extinguishing system
When introduced directly to a fire, dry chemical powder extinguishes flames almost immediately. Dry chemical powder is intended for use in extinguishing fires involving bulk chemical agents and liquefied gases. Our dry systems are developed to meet the increasing demand for large capacity systems for the protection of ships carrying LNG/LPG and certain chemicals or agents in bulk.
G Fire Solutions has the experience and technological knowledge to provide you with the optimal fire fighting solution for any given project. We develop both our products and expertise as new requirements arise, founded on knowledge acquired through many decades of experience in the business.
G Fire Solutions has specialised expertise in the integration of equipment and processes. We possess a unique ability to understand and identify the needs and requirements of our customers. Our priority is to create long-term customer relationships in the global market, based on our outstanding ability to supply – complete solutions and innovative designs.
Our flexible approach allows us to respond appropriately in each case and appoint the system most suitable for each application.
When working on a ship building project, we aim to get involved from the very beginning. Based on a thorough evaluation of
various solutions in close cooperation with naval architects,
marine authorities and ship designers, we recommend the most appropriate fire fighting solution for each specific project.
From beginning to end, G Fire Solutions offers you a total solution including:
- Fire risk analysis
- System evaluation: i.e., which technologies are best suited to the project
- System design and dimensioning
- Layout and installation drawings
- Installation, commissioning, start-up and service
- Worldwide support
